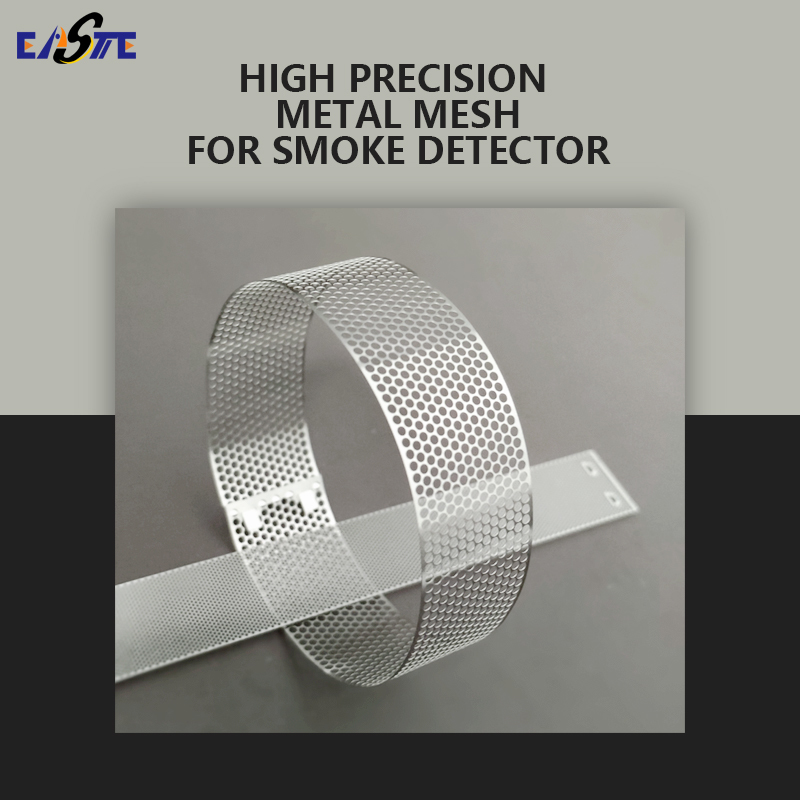

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

Name: High Precision Metal Mesh for Smoke Detector with Chemically Etching Service
Brand: XHS or Customized
Price: 80 USD

China High Precision Metal Mesh for Smoke Detector with Chemically Etching Service wholesale

Brand Name : XHS or Customized

Model Number : XHS or Customized

Certification : ISO 9001, ISO14001, ROHS

Place of Origin : China

MOQ : 100

Price : 80-100USD

Payment Terms : T/T,Western Union

Supply Ability : 10000-100000PCS / week

Delivery Time : 2-3 weeks

Packaging Details : PE bag, Carton

Material : Stainless Steel, Copper, Aluminum, Titanium, Nickel or custom alloy etc.

Thickness : Support 0.02-3mm Thickness Cusomization

Size : As client's requirements

Mesh Aperture : Customizable for optimal smoke particle detection.

Hole Shape : Round, square, or custom shapes depending on the requirements.

Hole Size : Ranges from microns to millimeters, according to design needs.

Corrosion Resistance : Resistant to rust and corrosion, ensuring long-term functionality in humid or harsh environments.

Contact Now

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

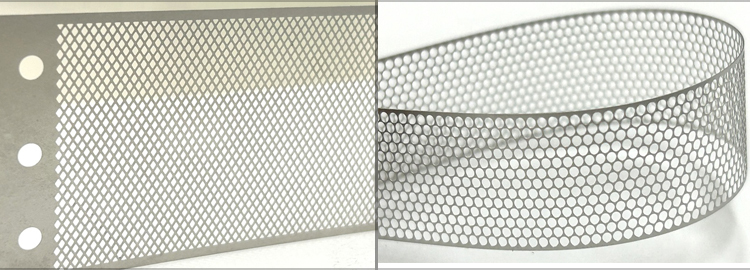

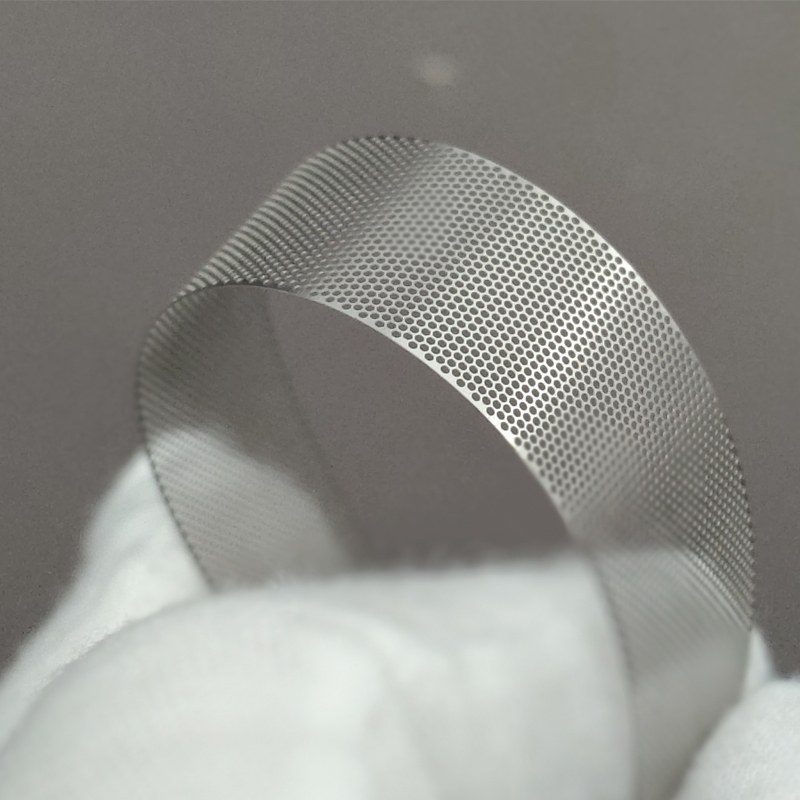

Features of Metal Mesh for Smoke Detector:

High Precision: Our chemically etched stainless steel mesh ensures uniform hole size and placement, optimizing performance in smoke detection systems.
Customizable Thickness: Available in 0.1mm, 0.2mm, and 0.3mm thicknesses to fit various smoke detector models.
Corrosion Resistance: Crafted from premium stainless steel for excellent rust and corrosion resistance, ensuring durability in tough environments.
Fine Mesh Pattern: Delivers superior filtration and airflow, crucial for accurate smoke detection.
Lightweight & Durable: Thin yet strong, providing durability without extra weight for the smoke detector.

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

Specifications of Etched Metal Mesh for Smoke Detector:

Material:	Stainless Steel, Copper, Aluminum, Titanium, Nickel, as requested.
Thickness Options:	0.02-3mm can be customized
Mesh Aperture Size:	Customizable
Width:	Customizable
Length:	Customizable
Surface Finish:	Smooth, polished, or matte depending on the specific requirements.
Application:	Smoke detectors, fire alarm systems, and other environmental sensing devices, etc..

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

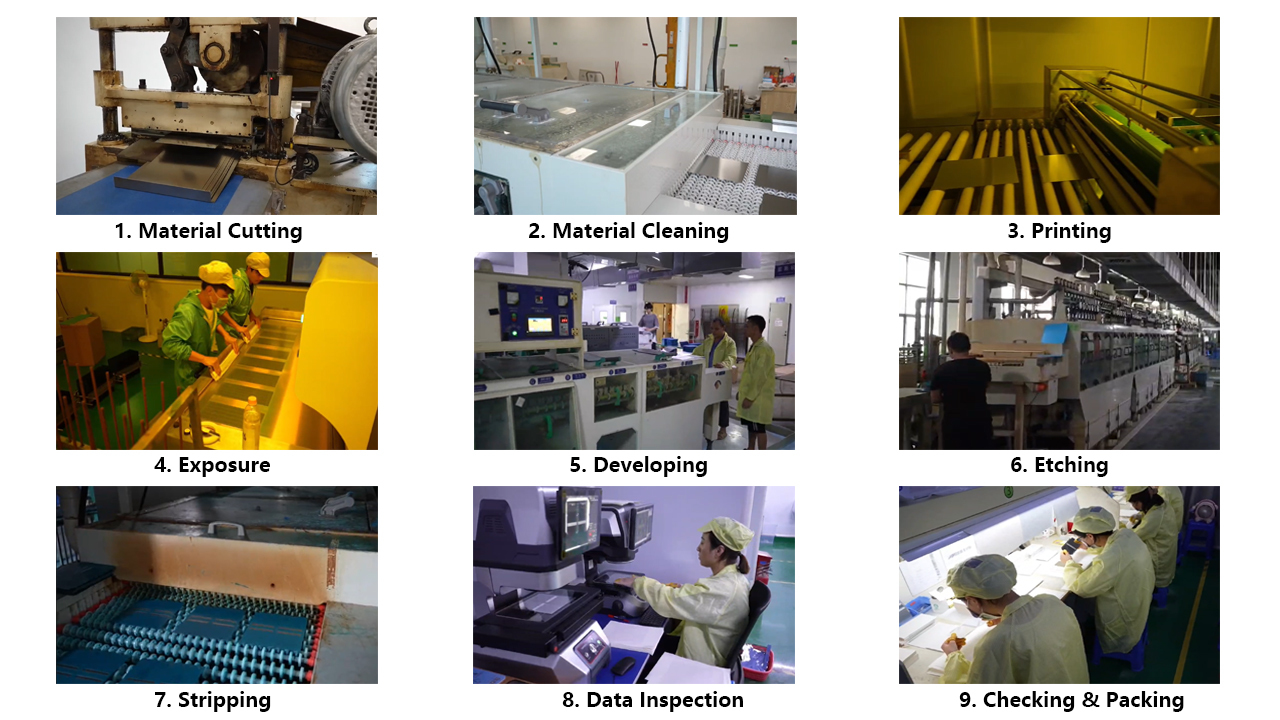

How to Chemically Etch Metal Mesh for Smoke Detectors:

Material Cutting: Cut the stainless steel sheet to the required size and thickness (0.1mm, 0.2mm, or 0.3mm).
Material Cleaning: Clean the surface to remove grease, dust, and oxidation for proper photoresist adhesion.
Printing: Print the mesh pattern onto the metal using photolithography or digital printing.
Exposure: Expose the photoresist to UV light, hardening the exposed areas and leaving the unexposed ones soft.
Developing: Remove the unexposed photoresist, revealing the mesh pattern.
Etching: Submerge the metal in an etching solution (e.g., ferric chloride) to dissolve the exposed metal and form the mesh.
Stripping: Remove the remaining photoresist using a chemical stripper.
Data Inspection: Inspect the etched mesh under a microscope to ensure accuracy.

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

Advantages of Etched Metal Mesh for Smoke Detectors:

Precision Engineering: Chemical etching creates highly accurate, intricate mesh patterns for optimal smoke detection sensitivity.
Customization: Offers custom hole sizes, thicknesses, and patterns for tailored smoke detector designs.
No Material Distortion: Unlike mechanical methods, chemical etching preserves the material's integrity without distortion.
Consistent Quality: Ensures uniformity and consistency, meeting strict performance standards.
Cost-Effective for Small Runs: Ideal for small batches or prototypes, as it doesn’t require expensive tooling or molds.

How to Custom Metal Mesh for Smoke Detectors from Us:

Consultation & Design: Share your mesh specifications (size, thickness, aperture, material), and we’ll ensure your design needs are met.
Prototype Development: We provide a prototype for approval, allowing you to test its fit and performance.
Custom Production: Upon approval, we begin mass production, ensuring precision and consistency with advanced etching techniques.
Quality Assurance: Each mesh is inspected for hole size, corrosion resistance, and durability to meet quality standards.
Flexible Order Quantities: We offer flexible order sizes, whether small or large scale.
On-time Delivery: We ensure fast delivery without compromising quality, meeting your schedule.

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service Images
